Smart automatic detection: No need to select AC or DC volts or resistance. Tester selects the right setting automatically
Large amp range capability: TRMS and AC up to 600A
Cat IV 600V

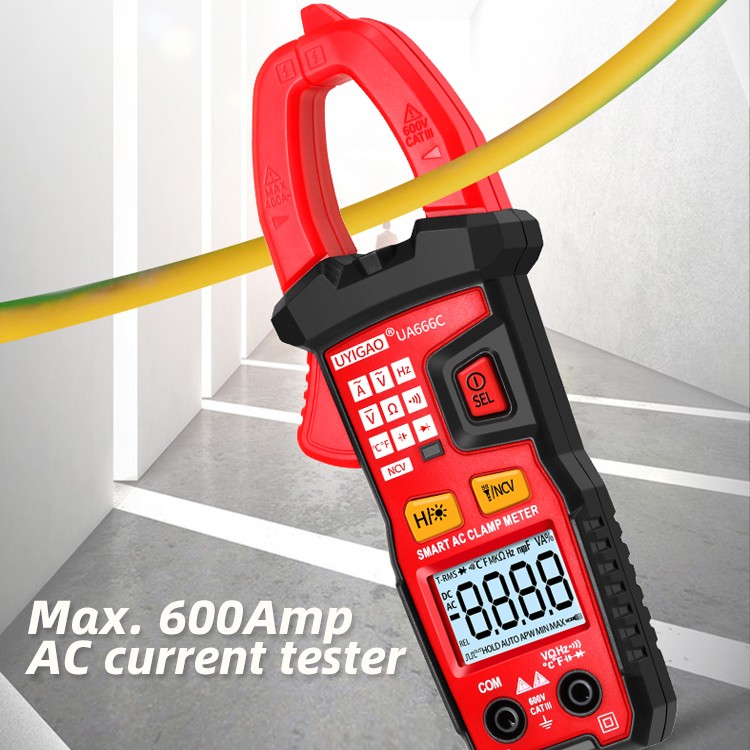

New design smart automatic Clamp multimeter NCV AC Current Digital clamp meter UA666C
Basic function | Range | Resolution | Accuracy |
UA666C | |||
AC Current | 6A | 0.001A | ±(3.0%+20d) |
60A | 0.01A | ±(2.5%+8d) | |
400A | 0.1A | ||
400A~600A | 0.1A | ±(3.0%+10d) | |
DC Voltage | 6V | 0.001V | ±(0.5%+3d) |
60V | 0.01V | ||
600V | 0.1V | ±(0.8%+5d) | |
AC Voltage | 6V | 0.001V | ±(0.8%+5d) |
60V | 0.01V | ||
600V | 0.1V | ±(1.2%+5d) | |
Resistance | 6KΩ | 0.001KΩ | ±(0.8%+3d) |
60KΩ | 0.01KΩ | ||
600KΩ | 0.1KΩ | ||
6MΩ | 0.001MΩ | ±(1.2%+3d) | |
10MΩ | 0.1MΩ | ||
Special function | |||
Auto power off | Yes | ||
Backlights and Led light | Yes | ||
Buzzer | Yes | ||
On-off measurement | Yes | ||
Overload protection | Yes | ||
Low voltage display | Yes | ||
Power supply | Yes | ||
Maximum value display | 5999 | ||
Size | 184.0mm*66.0mm*32.5mm |
