The Digital Ground Resistance Tester Model 6412 performs ground resistance and soil resistivity tests. This direct reading testers measures from 0 to 1200Ω, and is auto-ranging, so it automatically seeks outs the optimum measurement range.

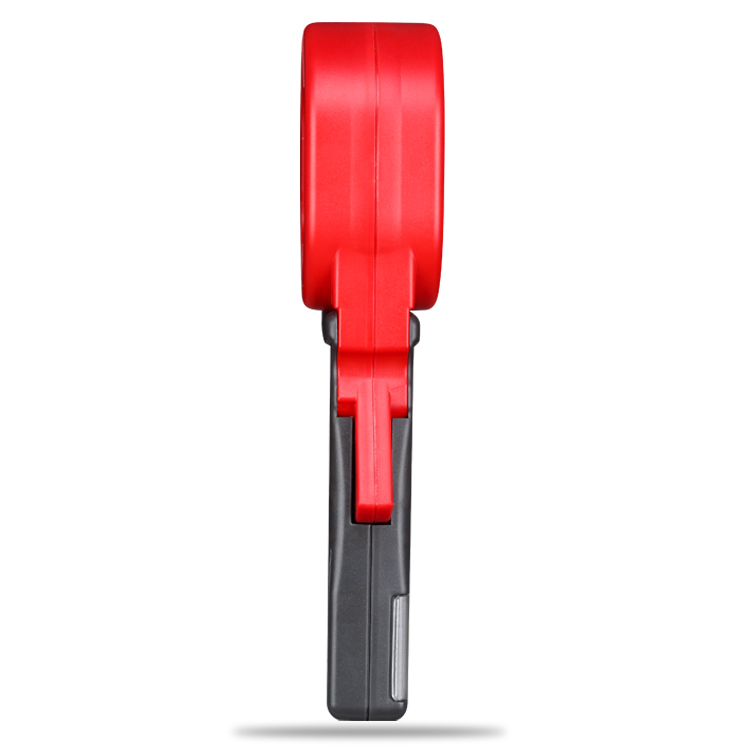

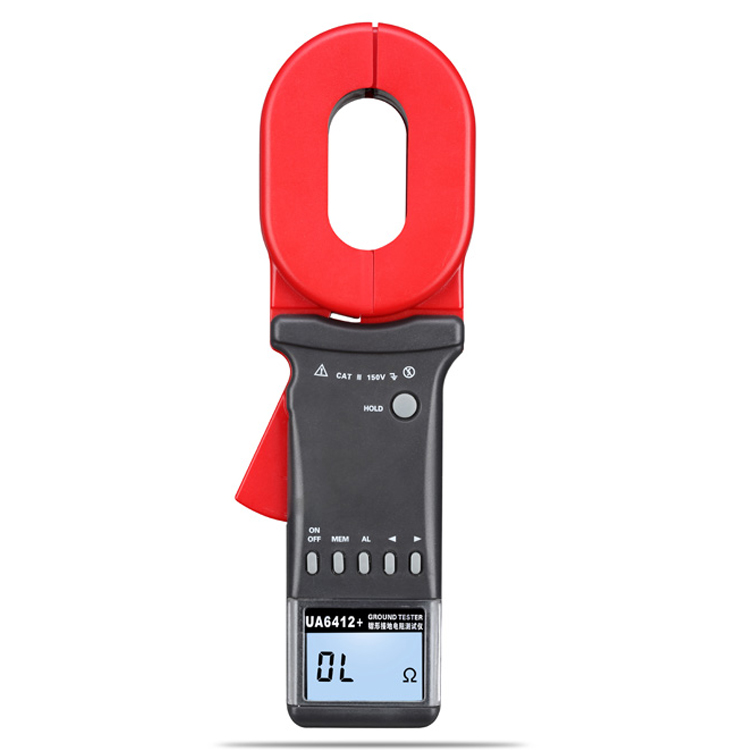

UA6412 1200ohm Digital Clamp On Earth Resistance Tester Ground Resistance Meter
Earth Resistance Tester, Ground Resistance Clamp on meter, Clamp on earth resistance meter
UA6412 1200ohm Key Specifications/Special Features:
Clip-on table pleasing appearance easy to master
Parameters accurately
Basic features | Range | Accuracy |
Grounding resistance (Ω) | 0.01Ω-0.099Ω 0.1Ω-0.99Ω 1.0Ω-49.9Ω 50Ω-99.5Ω 100Ω-199Ω 200Ω-395Ω 400Ω-590Ω 600Ω-1200Ω | ±(1%+0.01) ±(1%+0.01) ±(1%+0.1) ±(2%+0.5) ±(3%+1) ±(6%+5) ±(10%+10) ±(20%+20) |
Current | 0-99mA 100-299mA 0.30-2.99mA 3.0-9.99mA 10-20mA | ±(2.5%+5mA) ±(2.5%+10mA) ±(2.5%+0.02mA) ±(2.5%+0.03mA) ±(2.5%+0.05mA) |
Low battery indication | V | |
Data hold/storge | V | |
Auto power off | V | |
Single measurement | 1S | |
Relative humity | 10-90% | |
Work temperature | -10-50°C | |
External electric field | <40A/m | |
Single measuring time | <1V/m | |
Measurement resistance resolution | 0.001Ω | |
Current frequency | 50Hz | |
Measurement data storage | 30sets | |
Resistance measurement range | 1-199Ω | |
Current measurement range | 1-499mA | |
Protection level | double insulation | |
Operating mode | automatic range | |
Spab of jaw | 28mm | |
Power | 6VDC |
