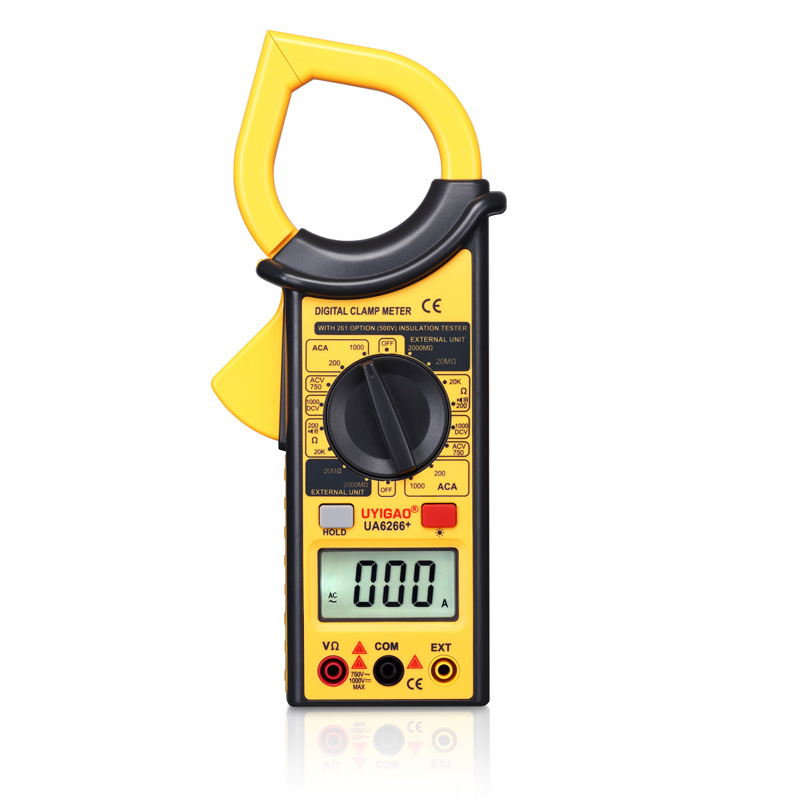

The 1000A True-RMS AC Clamp Meter is designed for electrical motor maintenance in high voltage industrial environments. Inrush capability allows motor start-up monitoring. The Φ55m diameter jaw can easily handle large conductors. This professional T-RMS clamp meter offers a full range of standard multimeter features, including AC current, AC/DC voltage, frequency, True-RMS, diode, etc.
Digital clamp meter has AC current range 0-1000A, maximum jaw opening size 55mm, 4 digit display and maximum value 1999.
Specification:
| Basics | Model | UA6266+ | |
| Weight | 310g | ||
| Size (L*W*H) | 230*70*37mm | ||
| Display | 4 digit LCD display | ||
| Maximum display value | 1999 | ||
| Power supply | DC 9V, 6F22 battery | ||
| Maximum jaw opening size | 28mm | ||
| Woring environment | Temperature: 5℃~35℃ (41℉~95℉), relative humidity:＜75% | ||
| Storage temperature | -10℃~+50℃ (14℉~122℉) | ||
| Accessories | A pair of test probes, a user manual, 6F22 battery | ||
| Functions | Item | Range | Accuracy |
| AC current | 1000A | ±(3.0%+10 digits) | |
| DC voltage | 1000V | ±(0.8%+3 digits) | |
| AC voltage | 750V | ±(1.2%+5 digits) | |
| Resistance | 2000MΩ | ±(5.0%+2 digits) | |
| Special functions | Diode test | Display forward voltage value of diode | |
| On-off buzzer | Continuity test buzzer | ||
| Data hold | Hold the reading when taking a measurement | ||
| Automatic power off | Automatic power off when 15 minutes no operation | ||
| Overload protection | Overload protection for 100% range | ||
| Range selection | Manual range selection | ||
| Backlight | Backlight for LCD display | ||
Specifications:
Model：UA6266+
Color：Yellow
Display: 3 1/2 digit LCD
Maximum display value: 1999 number.
Polarity indication: automatic indication, '-' indicates negative polarity.
Overrange display: ‘1’ or ‘-1’.
Sampling time: about 3 times / sec
Unit display: with function, power unit display.
Power: DC power supply 9.0V
Jaw opening size: 50mm cable diameter is not more than 50mm
Static working current: no more than 2.0mA (without backlight)
Battery type: 6F22 9V battery
Battery undervoltage indication: LCD displays symbols.
DC voltage(V):1000V
AC voltage(V): 750V
AC current (A):200A/1000A
Resistance(Ω):200Ω/20kΩ
On-off test：200Ω
High resistance test (with 500V insulation test accessory)：20MΩ/2000MΩ
Temperature coefficient: less than 0.1 × accuracy / ° C
Working temperature: 18 ° C ~ 28 ° C
Storage temperature: -10 ° C ~ 50 ° C
Size: 230 × 70 × 37mm
Weight: about 310g (including battery)
Ambient temperature: 235 ° C
Relative humidity: < 75%
Accuracy: ±(a% × reading + word count)
Accuracy guarantee period: one year
Package Included:
1 x Digital Clamp multimeter
2 x Test Pens
1 x User manual
