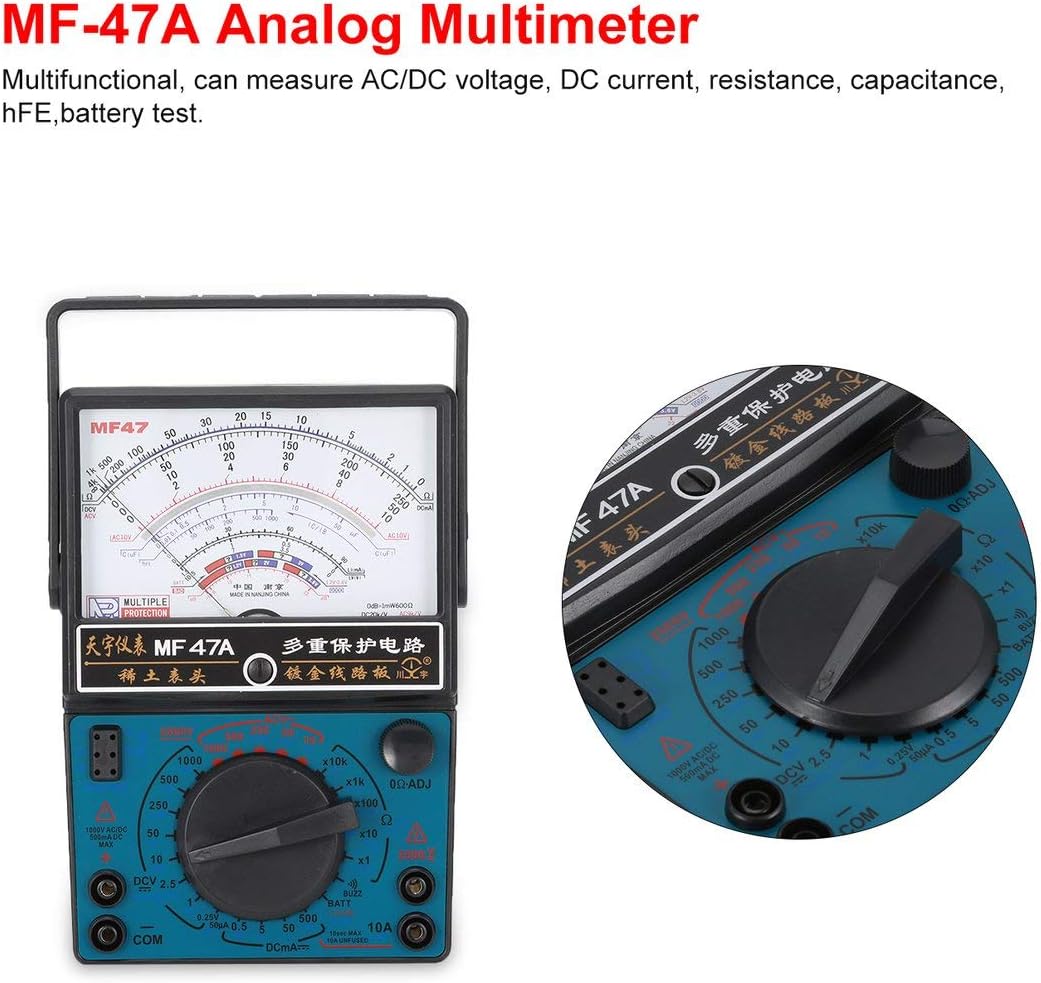

MF-47A Analog multimeter DC/AC Voltage Ammeter Battery Test Handheld HFE Tester Multi-Tester Alarm Pointer

• 1. Multi-functional, AC / DC voltage, DC current, resistance, battery test, capacitance, hFE

• 2. Buzzer Alarm: Buzzer alarm when less than 50Ω.

• 3. Battery test: 1.2-3.6V wide measurement range

• ACCURATE AND RELIABLE: Clear dial, clear measurement results and high efficiency.

• 5. Audio Level Tester: Designed to measure the gain and transmission loss of the amplifier at a specific load impedance and the measurement unit is db.

Product description

Features:
1 Multifunctional, AC / DC voltage, DC current, resistance, battery test, capacitance, hFE
2. Buzzer Alarm: When it reaches less than 50Ω, it will be a buzzer alarm
3 Battery test: Wide measurement range of 1.2 -3.6V
4 PRECISE AND RELIABLE: Clear dial, clear measurement results and high efficiency
5 Audio level measurement: Designed to measure amp gain and transmission loss at specific load impedance and units
2. Clear Display, Accurate Measurement, With Fuse Protection
3 Great tool for laboratories, factories and radio enthusiasts.
Specifications:
Model: MF-47A
Battery: 1.5 V battery + 9 V battery (sold separately).
DC Voltage Range: 0.25V, 1V, 2.5V, 10V, 50V, 250V, 500V, 1000V, 2500V
AC Voltage Range: 10V, 50V, 250V, 500V, 1000V, 2500V
DC Current Range: 0.5mA, 5mA, 50mA, 500mA, 10A
Resistance: 1, 10, 100, 1k, 10k
Battery Range: 1.2 - 3.6 V
Capacity e:CX0.1, CX1, CX10, CX100, CX1K, CX10K
hFE:R x 10hFE, 0-1000
Fuse Protection:Yes
Library Check:Yes
Size: 163 x 11 x 45 mm
Weight: 11.6 oz (316 g).
Package information:
Package Size: 145 x 212 x 66mm / 5.71 x 8.35 x 2.6in
Package Weight: 459g / 1.01lb
Package included:
1 x Multimeter
1 x Pair of Test Leads
1 x User Manual
