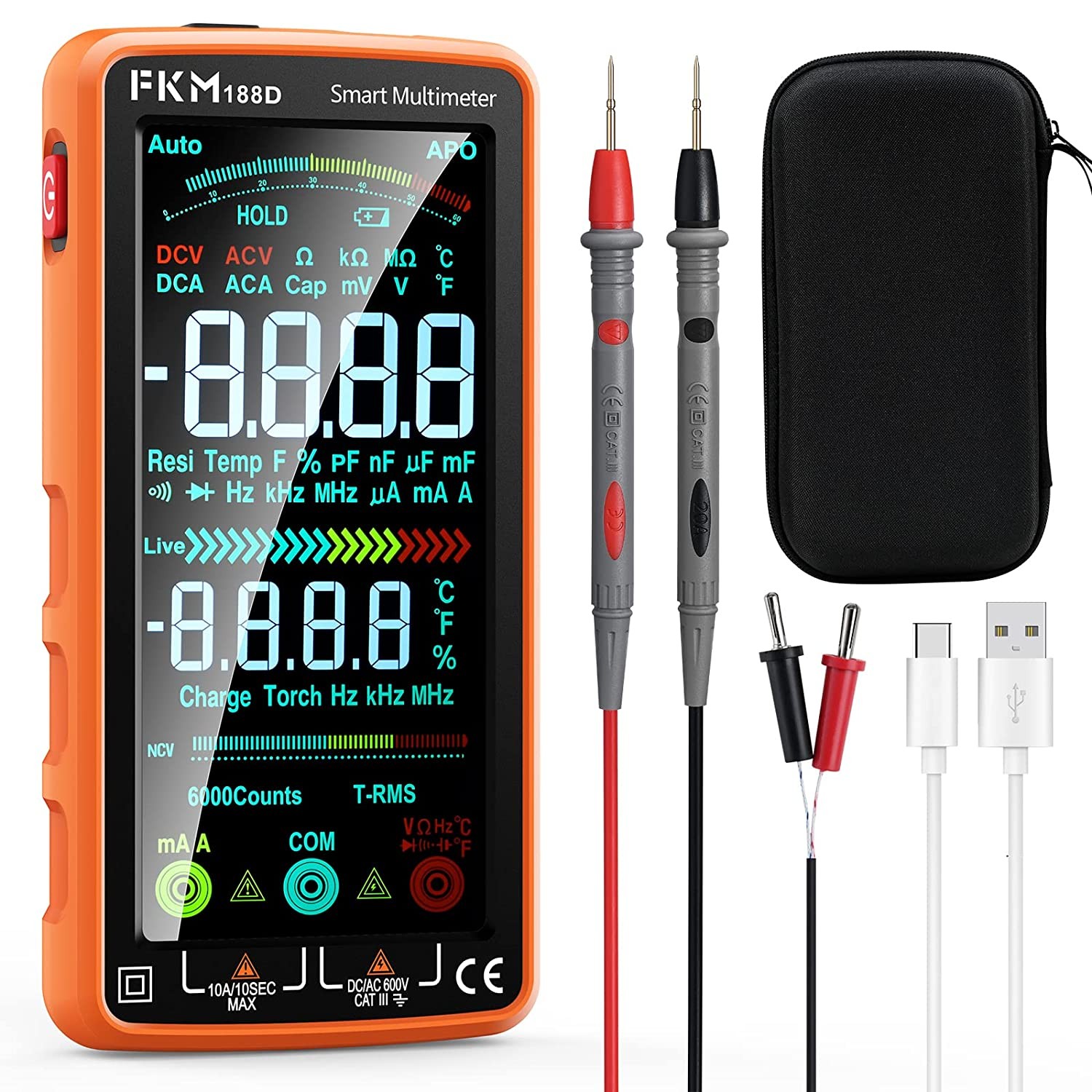

FKM188D Digital Smart Multimeter

FKM188D Battery Rechargeable LCD Display Touch Screen multimeters True RMS DMM Tester Multimetro Digital Smart Multimeter

• [Smart Mode] This FKM multimeter defaults to "Smart Mode" when it is powered on, and can automatically identify voltage, resistance, and continuity. In the Smart Mode, measurements can be made without any operation, and you can select the range that provides the best resolution. It will save the time of manually selecting the mode, making your work more efficient. This easily-to-use digital multimeter is ideal for both beginners and professionals.

• [Multifunction & Accuracy] Accurately measure AC/DC Voltage, AC/DC current, temperature, resistance, capacitance, frequency, NCV function, duty cycle, continuity and diodes, test firing line, etc. The voltmeter has a 3 times/second sampling rate and displays a maximum of 6000 counts for high resolution and accurate measurements. The FKM smart multimeter is a useful tool for electricians, engineers, electronics enthusiasts, and households.

• [Easy to Read] The digital multimeter has a 5” full-color LCD screen with a reasonable layout, convenient for data reading. Don’t worry about the display dimming, the digital multimeter is equipped with constant light and data hold function, so you can easily record data. Ideal if you need to perform maintenance in a dark environment, the voltage tester flashlight will illuminate the work area for you. Suitable for troubleshooting sockets, batteries, fuses, electronics, and automotive circuits.

• [User-Friendly Design] The digital multimeter is only the size of a phone, you can easily take it anywhere by putting it in your pocket. It is powered by a 2800mAh large-capacity rechargeable battery, so you can charge it via a type-c charging cable (included) instead of buying an extra battery, and the long battery life and low battery prompt make your work worry-free. In addition, the durable silicone cover can protect the amp meter from wear and tear and electric shock.

• [High Security & Rich Accessories] The double fuse protection (FF630mA/250V, FF20A/250V) is anti-burn and protects against overloading. The volt meter meets the safety requirements of IEC61010-1 CAT III 600V overvoltage safety standards and pollution level, allowing you to feel comfortable using it. The FKM multimeter has rich accessories: 1x FKM digital multimeter, 1x Tool Bag, 2x Test Leads, 1x Thermocouple, 1x Type-C Charge Cable, and 1x User Manual.

  Technical Indicators

• True RMS	The range of AC voltage and current is specified between 2% and 100% of full scale
  AC/DC Current	6000mA: ±(1.0% + 5), 10A: ±(2.5% + 10)
  DC Voltage	6V/60V: ±(0.5% + 3), 600V/1000V: ±(0.8% + 10)
  AC Voltage	6V/60V: ±(0.8% + 3), 600V/750V: ±(1.0% + 10)
  Frequency	9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz: ±(0.8% + 3)
  Resistance	600Ω/6kΩ/60kΩ/600kΩ: ±(0.8% + 3), 6MΩ: ±(1.2% + 3), 60MΩ: ±(2.5% + 5)
  Capacitance	60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF: ±(4.0% + 20), 60.00mF: ±(5.0% + 5), 100.0mF: Uncalibrated
  Continuity Test	If the resistance of the tested circuit is less than 10, the buzzer will sound
  Diode Test	Show the approximate diode forward voltage value
  Temperature Measurement	-40℉－600℉: ±(1.2% + 6d), 601℉－1832℉: ±(1.9% + 6d)
